WDK-1 Microswtich
Ⅱ Basic technical date
Item |
Parameters |
Product code |
WDK-1 |
1 |
Puncture (volt) strength |
50Hz 600V AC 1min |
2 |
Mechanical life (cycles) |
5 × 10 5 |
3 |
Electric life( τ =0.001S) (cycles) |
5 × 10 4 |
4 |
Rated load of contact circuit) |
24VDC 5A |
48VDC 2.5A |
240VDC 0.5A |
5 |
Work force |
2 ～ 4N |
Ⅲ Use conditions required
Item |
Parameters |
Product code |
WDK-1 |
1 |
Ambient temperature |
（ -25 ～ +60 ）℃ |
2 |
Relative humidity |
Up to 98% at + 20 ℃ |
3 |
Vibration freq. at the fixed position |
1 ～ 50Hz （ freq.1 ～ 10Hz ， ampl.25/f ； freq.10 ～ 50Hz ， ampl.250/f 2 ） |
4 |
Shock acceleration |
30m /s 2 |
5 |
Mounting directions |
Optional |
Ⅳ Circuit diagram
Fig. 1

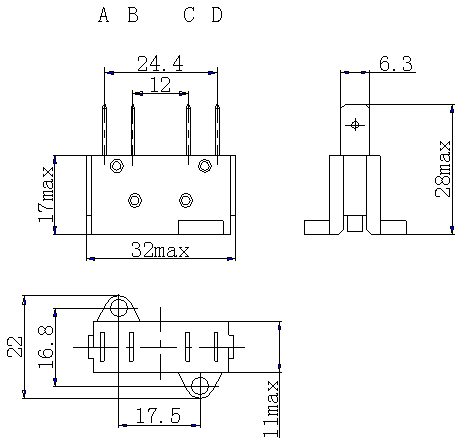

Ⅴ Configurational mounting diagram
Fig. 1
|
