Item

Parameters

Product code

JCQ Series contactor

1

Rated coil volt ( V DC )

See list

2

Max. coil current under rated volt at 20 ℃ (A)

See list

3

Max. coil start current in cold state at 20 ℃ (A)

See list

4

Rated volt of contact circuit (V DC)

See list

5

Rated load current of contact circuit (A)

See list

6

Operating volt in cold state at （ 20 ± 5 ）℃ (V DC)

See list

7

Fluctuating range of power supply volt

± 20% rated volt

8

Contact volt drop of contact at 100A

Not above 60mV

9

Max. make-break ability of contact

Connect four times rated load current, make and break once for 5ms

10

Max. operating time at rated volt(ms) (coil with no suppression circuit)

Pickup

30

Release

30

11

Max. bounce times when contact breaks(ms)

3

12

Puncture(volt) strength

50Hz,1000V AC,1min

13

Electric life( τ =0.001S) (cycles)

100,000

14

Working duty

Continuous

Item

Parameters

Product code

JCQ Series contactor

1

Ambient temperature

（ -25 ～ +40 ）℃

2

Relative humidity

Up to 98% at + 20 ℃

3

4

Shock acceleration

30m /s 2

5

Mounting directions

Optional

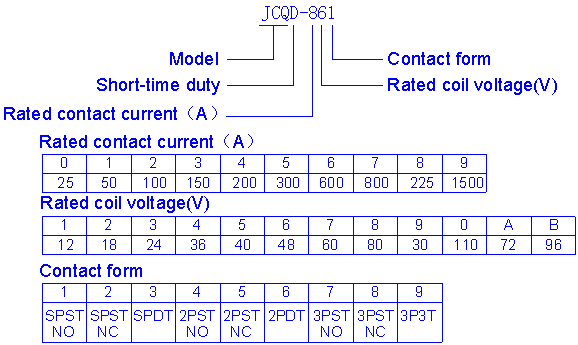

Product code

Rated coil volt ( V DC )

Max. coil current under rated volt at 20 ℃ (A)

Rated load current of contact circuit (A)

Operating volt in cold state at （ 20 ± 5 ）℃ (V DC)

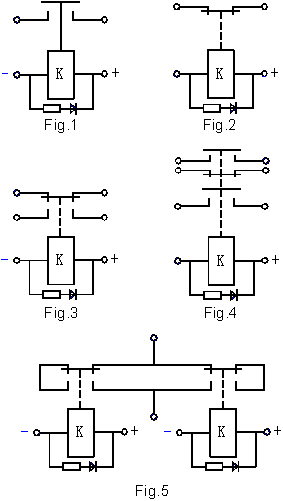

Circuit diagram

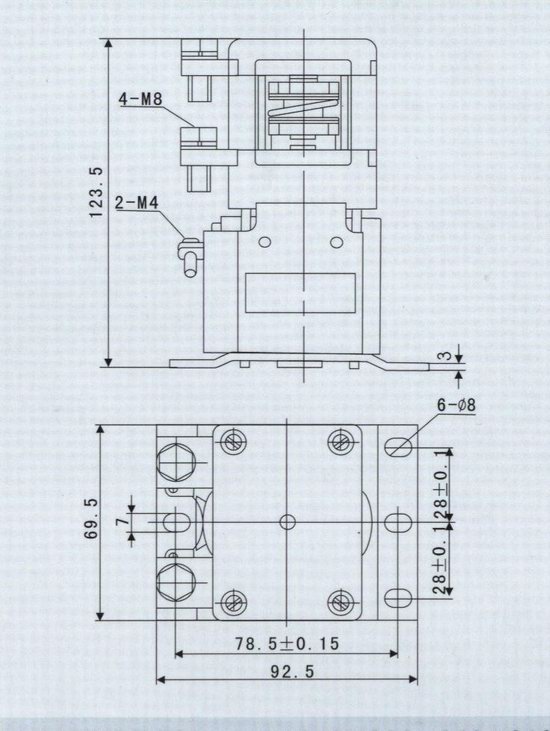

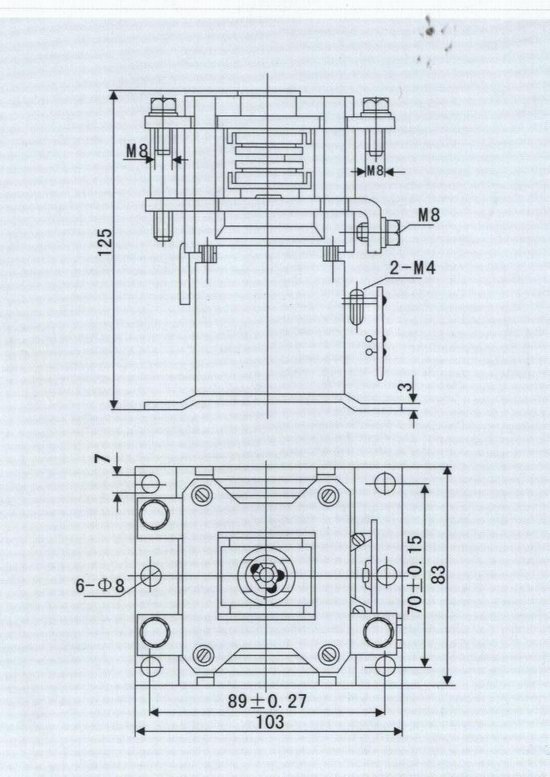

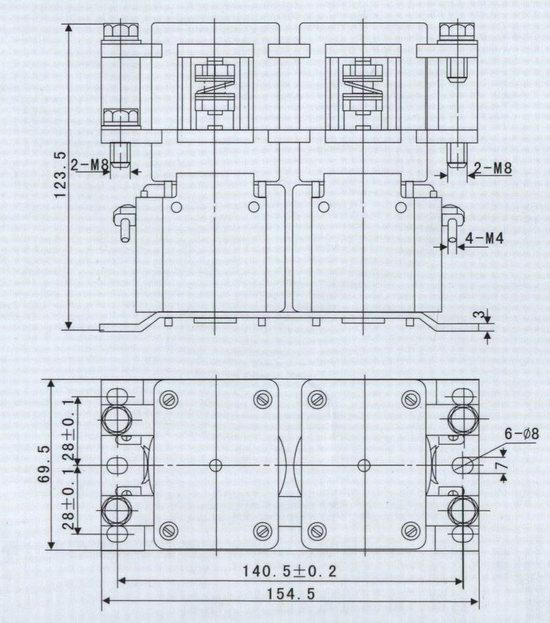

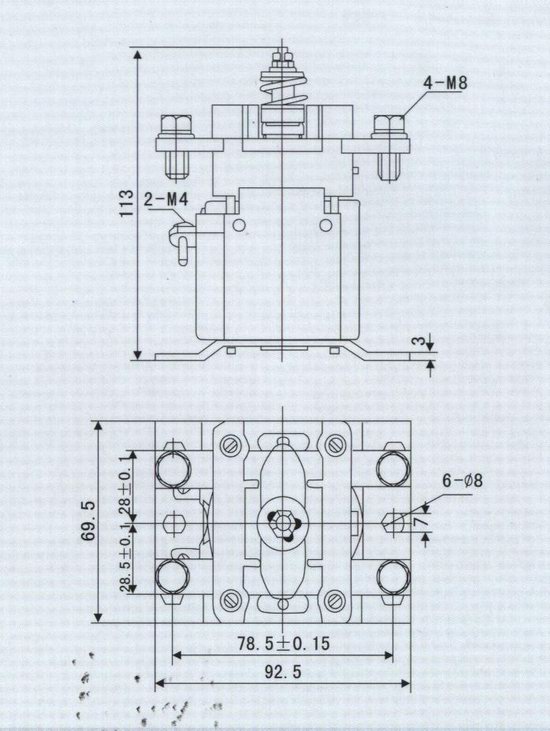

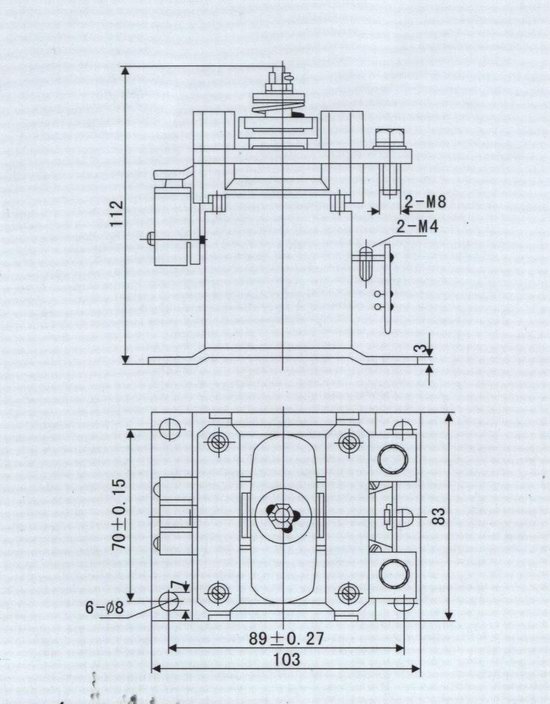

Configurational mounting diagram

Pickup

Release

JCQ-323

18

2.71

18V DC、 150A

9max

1min

Fig.3

Fig.3

JCQ-333

24

2.11

24V DC 、 150A

11max

1.2min

Fig.3

Fig.3

JCQ-363

48

1.02

48V DC 、 150A

22max

2.4min

Fig.3

Fig.3

JCQ-521A

18

2.31

18V DC 、 300A

9max

1min

Fig.4

Fig.4

JCQ-531A

24

1.74

24V DC 、 300A

11max

1.2min

Fig.4

Fig.4

JCQ-561A

48

0.84

48V DC 、 300A

22max

2.4min

Fig.4

Fig.4

JCQ-231

24

2.10

24V DC 、 150A

11max

1.2min

Fig.1

Fig.5

JCQ-241

36

1.22

36V DC 、 150A

16max

1.8min

Fig.1

Fig.5

JCQ-261

48

0.92

48V DC 、 150A

22max

2.4min

Fig.1

Fig.5

JCQ-236

24

2.10

24V DC 、 150A

11max

1.2min

Fig.5

Fig.2

JCQ-266

48

0.92

48V DC 、 150A

22max

2.4min

Fig.5

Fig.2

JCQ-233

24

2.10

24V DC 、 150A

11max

1.2min

Fig.3

Fig.1

JCQ-243

36

1.15

36V DC 、 150A

16max

1.8min

Fig.3

Fig.1

JCQ-263

48

0.87

48V DC 、 150A

22max

2.4min

Fig.3

Fig.1

JCQ-831

24

2.00

24V DC 、 300A

11max

2.4min

Fig.1

Fig.5

JCQ-861

48

0.87

48V DC 、 300A

22max

2.4min

Fig.1

Fig.5

JCQ-833

24

2.00

24V DC 、 300A

11max

2.4min

Fig.3

Fig.1

JCQ-841

36

1.22

36V DC 、 300A

16max

1.8min

Fig.1

Fig.5

JCQ-843

36

1.15

36V DC 、 300A

16max

1.8min

Fig.3

Fig.1

JCQ-863

48

0.87

48V DC 、 300A

22max

2.4min

Fig.3

Fig.1

JCQ-8B3

96

1.74

96V DC 、 300A

55max

5min

Fig.3

Fig.3

JCQ-836

24

2.00

24V DC 、 300A

11max

1.2min

Fig.5

Fig.2

JCQ-891

30

0.92

30V DC 、 300A

14max

1.5min

Fig.1

Fig.5

JCQ-866

48

0.87

36V DC 、 300A

36max

3.2min

Fig.5

Fig.2

JCQ-876

60

1.20

60V DC 、 300A

36max

2.4min

Fig.5

Fig.2

JCQ-8B6

96

1.74

96V DC 、 300A

55max

5min

Fig.5

Fig.2
