100A JCC Series Contactor

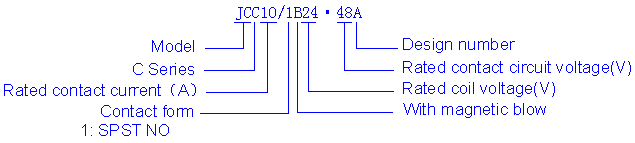

Ⅱ Basic technical date
Item |
Parameters |
Product code |
100A JCC Series contactor |
1 |
Rated coil volt ( V DC ) |
See list |
2 |
Max. coil current under rated volt at 20 ℃ (A) |
See list |
3 |
Max. coil start current in cold state at 20 ℃ (A) |
See list |
4 |
Rated volt of contact circuit (V DC)
|
See list |
5 |
Rated load current of contact circuit (A) |
See list |
6 |
Operating volt in cold state at （ 20 ± 5 ）℃ (V DC) |
See list |
7 |
Fluctuating range of power supply volt |
± 20% rated volt |
8 |
Contact volt drop of contact at 50A |
Not above 80mV |
9 |
Max. make-break ability of contact |
Connect four times rated load current, make and break once for 5ms |
10 |
Max. operating time at rated volt(ms) (coil with no suppression circuit) |
Pickup |
30 |
Release |
30 |
11 |
Max. bounce times when contact breaks(ms) |
3 |
12 |
Puncture(volt) strength |
50Hz,1000V AC,1min |
13 |
Electric life( τ =0.001S) (cycles) |
10,000 |
14 |
Working duty |
Continuous |
Note ： The products with microswitch, the Rated load of microswitch is 48V DC 、 2A or24V DC 、 5A . |
Ⅲ Use conditions required
Item |
Parameters |
Product code |
100A JCC Series contactor |
1 |
Ambient temperature |
（ -25 ～ +40 ）℃ |
2 |
Relative humidity |
Up to 98% at + 20 ℃ |
3 |
Vibration freq. at the fixed position |
1 ～ 50Hz （ freq.1 ～ 10Hz ， ampl.25/f ； freq.10 ～ 50Hz ， ampl.250/f 2 ） |
4 |
Shock acceleration |
30m /s 2 |
5 |
Mounting directions |
Optional
|
Ⅳ Circuit diagram
Ⅴ Products list
Product code |
Rated coil volt ( V DC ) |
Max. coil current under rated volt at 20 ℃ (A) |
Rate load of contact circuit |
Operating volt in cold state at （ 20 ± 5 ）℃ (V DC) |
Circuit diagram |
Configurational mounting diagram |
Max. coil current |
Max. coil start current |
Pickup |
Release |
JCC100/1B110·220 |
110 |
0.1 |
10 |
220V DC 、 100A |
60max |
11min |
Fig.1 |
Fig.1 |
Ⅴ Configurational mounting diagram
Fig. 1
|
