CONTACTOR
1 GENERAL Magnetic latch. DC-pulse to coil close or open the main contacts. Polarity when closing contactor “ 1” coil terminals to plus, “ 2” coil terminals to minus at the coil terminal. For continuous use. 1-pole, normally open (NO). May be ordered with auxiliary switch. Can be mounted vertically or horizontally. (if mounted vertically the coil should be at the bottom).
2 DESIGN

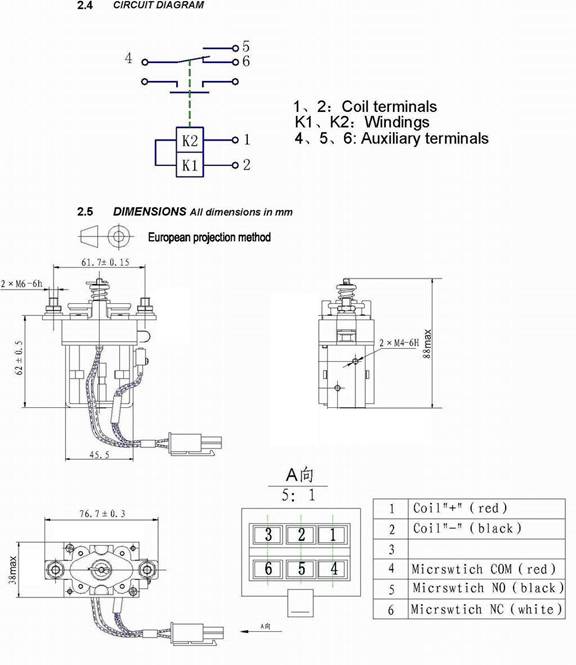

• 2.1 GENERAL Open 1-bridge contacts
• 2.2 VITAL SAFETY REQUIREMENTS This article forms part of a product with a special safety approval. Changes must not be introduced without previous confirmation by the design responsible .The following requirements must be fulfilled. The following requirements must be fulfilled. a U L -recognized component: QPQY2. b Flammability class: U L 94-V0.
• 2.3 MATERIAL SPECIFICATION AND REQUIREMENTS
Contact housing: |
U L -R/C Plastics (QMFZ2), |
Phenolic, |
|
U L 94-V0, min. 150 ℃ |
|
|
Bobbin case: |
U L -R/C Plastics (QMFZ2), |
PBT3316, |
|
1mmmin. UL94-V0, min. 140 ℃ |
|
Coil mounting bracket: |
Steel, Zn plated |
|
|
Terminal, screw and nut: |
Steel, M6 |
|
|
Coil wire: |
U L -R/C wire, temp class H |
|
|
Coil terminals: |
|
|
|
Main contact tip: |
Silver alloy |
|
|
Cable: |
AWG22, U L 3357 |
|
|
Connector: |
6-poles, U L -R/C connector, |
Molex, |
House of polyamide 6.6. Type 5557d, 39-01-2065.Sleeve. Tin plated. Type 5556,39-00-0039
１
LIMITING VALUES reference temp .20 ℃
Quantity |
Condition |
Values |
Unit |
Voltage, coil |
DC-pulse |
See product list |
V |
Voltage, main contact |
Resistive load |
See product list |
V |
Rated current, main contact |
DC-current |
See product list |
A |
Typical voltage drop across main contacts |
At 100A |
50 |
mV |
DC-plus duration |
|
200 ～ 1000 |
ms |
Ambient temp. |
|
-40~+85 |
℃ |
Temp, on terminals |
Acc. to UL |
105max |
℃ |
Auxiliary switch rated current |
At 24V dc |
5 |
|
At 48V dc |
2 |
|
Life cycles, Electrical |
At rated load |
10000 |
Operations |
Weight |
Approx. |
0.98 |
Kg |
4 MARKING AND PACKAGING
The component and package shall be marked with following information
a) The type designation of manufacturer.
b) The manufacturer name (or trade mark on the component).
c) Emerson product number （ only valid for the package ）
d) Date of manufacturer, year and week or batch code.
e) The number of components (only valid for package).
f) An indication on the case to identify a specific terminal. (Only valid for the component)
5 PRODUCTLIST
Product model |
CZJ-200S/30 · 60A 2 |
Product number purchased |
|
Coil voltage (V) |
30 |
Coil voltage range (V) |
24 ～ 57.6 |
Main contact voltage (V) |
60 |
Rated current (A) |
200 |
Coil resistance ( Ω ) |
50min |
Coil voltage for safe operation |
To close (V) |
16max |
To open (V) |
16max |
Aux. Switch |
Yes |
Cable connection |
Yes |
